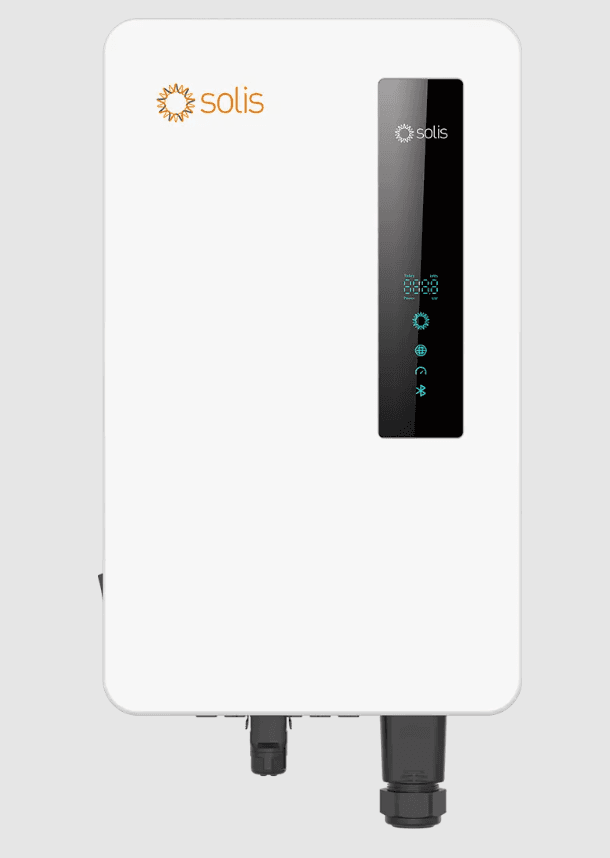

S6-GC3P30K03-NV-ND
by Ginlong (Solis) Technologies Co., Ltd · China
S6-GC3P(25-36)K03-NV-ND Type: On-Grid Transformer: Transformerless Transformer: Transformerless
Green Energy Score
77.1
100% profile complete
String Inverter30.0 kW98.5% peakMonitoringRS 485BluetoothWLAN
0Upvotes
Overview
S6-GC3P(25-36)K03-NV-ND Type: On-Grid Transformer: Transformerless Transformer: Transformerless
Key Specifications
Output Power
30.0 kW
Peak Efficiency
98.5%
Enclosure
IP66
Warranty
1 years
Max Input Voltage
1100 V
MPPT Range
180 – 1000 V
Max Output
30000 VA
Launch Year
2025
Full Specifications
Product Identity
NameS6-GC3P30K03-NV-ND
Slugginlong-solis-technologies-co-ltd-s6-gc3p30k03-nv-nd
ManufacturerGinlong (Solis) Technologies Co., Ltd
CountryChina
CategoryString Inverter
Sub-categoryOn-Grid
DC Input
Input Channels6
MPPT Voltage Range180 – 1000 V
Max Input Voltage1100 V
Max Input Current42 A
AC Output
Rated Output Power30.0 kW
Max Output Power30000 VA
Rated Voltage220 V
Frequency50, 60 Hz Hz
Max Output Current45.6 A
Power Factor0.99
Efficiency
Peak Efficiency98.5%
MPPT Efficiency98%
Night Power Consumption1000 mW
Protection & Environmental
Enclosure RatingIP66
Operating Temperature-25°C to 60°C
Physical
Weight25.5 kg
Dimensions625x355x250 mm
Communication
RS 485BluetoothWLAN
Module-Level Monitoring
Commercial
Price—
Warranty1 years
Launch Year2025
StatusAvailable
Regions & Certifications
Asia-PacificChina
Green Energy Score
Score77.1
Profile Completeness100%
