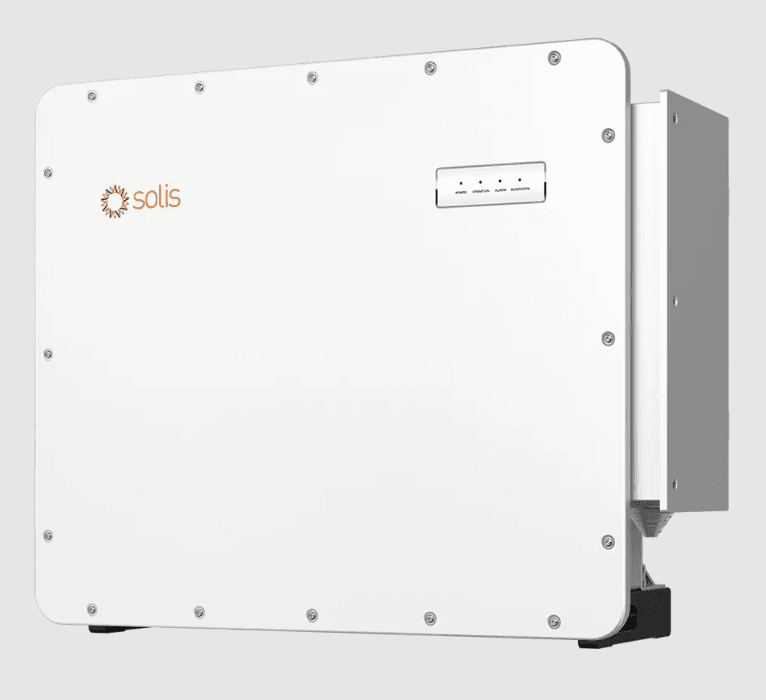

S6-GC3P80K07-LV-ND
by Ginlong (Solis) Technologies Co., Ltd · China
S6-GC3P(80-100)K07-LV-ND Type: On-Grid Transformer: Transformerless Transformer: Transformerless
Green Energy Score
76.9
100% profile complete
String Inverter88.0 kW98.8% peakMonitoringRS 485BluetoothWLAN
0Upvotes
Overview
S6-GC3P(80-100)K07-LV-ND Type: On-Grid Transformer: Transformerless Transformer: Transformerless
Key Specifications
Output Power
88.0 kW
Peak Efficiency
98.8%
Enclosure
IP66
Warranty
1 years
Max Input Voltage
800 V
MPPT Range
160 – 800 V
Max Output
88000 VA
Launch Year
2025
Full Specifications
Product Identity
NameS6-GC3P80K07-LV-ND
Slugginlong-solis-technologies-co-ltd-s6-gc3p80k07-lv-nd
ManufacturerGinlong (Solis) Technologies Co., Ltd
CountryChina
CategoryString Inverter
Sub-categoryOn-Grid
DC Input
Input Channels21
MPPT Voltage Range160 – 800 V
Max Input Voltage800 V
Max Input Current54 A
AC Output
Rated Output Power88.0 kW
Max Output Power88000 VA
Rated Voltage220 V
Frequency50, 60 Hz Hz
Max Output Current230.9 A
Power Factor0.99
Efficiency
Peak Efficiency98.8%
MPPT Efficiency98.3%
Night Power Consumption2000 mW
Protection & Environmental
Enclosure RatingIP66
Operating Temperature-30°C to 60°C
Physical
Weight105 kg
Dimensions869x1035.5x396 mm
Communication
RS 485BluetoothWLAN
Module-Level Monitoring
Commercial
Price—
Warranty1 years
Launch Year2025
StatusAvailable
Regions & Certifications
Asia-PacificChina
Green Energy Score
Score76.9
Profile Completeness100%
