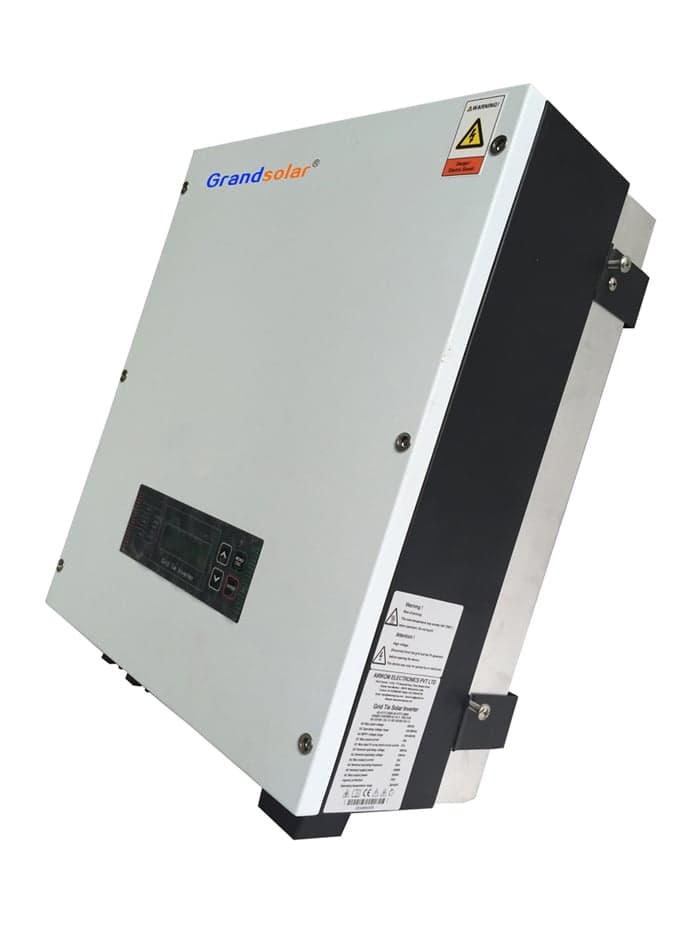

Grandglow TL2500

Grandglow TL2500

by Grandglow New Energy Technology Co., Ltd. · China

1KW-10KW Grid Tie Inverter Single Phase Type: On-Grid Transformer: Transformerless Transformer: Transformerless Grandglow New Energy Technology Co., Ltd is a new energy national high-tech enterprise manly engaged in R&D, production, sales, information and service of products in the field of new energy power supplies. The company is locatedin the high-tech economic development zone of huangshi, hubei province. The company's main products include solar/wind turbine off grid inverter, solar hybrid off grid inverter, solar/wind turbine on grid inverter, solar MPPT controller, PV combiner box, solar pump inverter, protable mobile power supply, storage lithium battery, rv lithium battery, street lamp lithium battery. At the same time, it also provides professional solar off-grid, on grid power generation system solutions for user.

Green Energy Score

48.9

100% profile complete

String Inverter2.5 kW97.5% peakMonitoringRS 232RS 485WLAN
0

Overview

1KW-10KW Grid Tie Inverter Single Phase Type: On-Grid Transformer: Transformerless Transformer: Transformerless Grandglow New Energy Technology Co., Ltd is a new energy national high-tech enterprise manly engaged in R&D, production, sales, information and service of products in the field of new energy power supplies. The company is locatedin the high-tech economic development zone of huangshi, hubei province. The company's main products include solar/wind turbine off grid inverter, solar hybrid off grid inverter, solar/wind turbine on grid inverter, solar MPPT controller, PV combiner box, solar pump inverter, protable mobile power supply, storage lithium battery, rv lithium battery, street lamp lithium battery. At the same time, it also provides professional solar off-grid, on grid power generation system solutions for user.

Key Specifications

Output Power

2.5 kW

Peak Efficiency

97.5%

Enclosure

IP65, NEMA 4X

Warranty

5 years

Max Input Voltage

500 V

MPPT Range

180 – 500 V

Max Output

2500 VA

Launch Year

2025

Full Specifications

Product Identity

NameGrandglow TL2500
Sluggrandglow-new-energy-technology-co-ltd-grandglow-tl2500
ManufacturerGrandglow New Energy Technology Co., Ltd.
CountryChina
CategoryString Inverter
Sub-categoryOn-Grid

DC Input

Input Channels1
MPPT Voltage Range180 – 500 V
Max Input Voltage500 V
Max Input Current12 A

AC Output

Rated Output Power2.5 kW
Max Output Power2500 VA
Rated Voltage230 V
Voltage Range190 – 270 V
Frequency50, 60 Hz Hz
Max Output Current11 A
Power Factor1

Efficiency

Peak Efficiency97.5%
MPPT Efficiency96.5%

Protection & Environmental

Enclosure RatingIP65, NEMA 4X
Operating Temperature-10°C to 40°C

Physical

Weight9.5 kg
Dimensions330x295x150 mm

Communication

RS 232RS 485WLAN
Module-Level Monitoring

Commercial

Price—
Warranty5 years
Launch Year2025
StatusAvailable

Regions & Certifications

Asia-PacificChina

Green Energy Score

Score48.9
Profile Completeness100%
