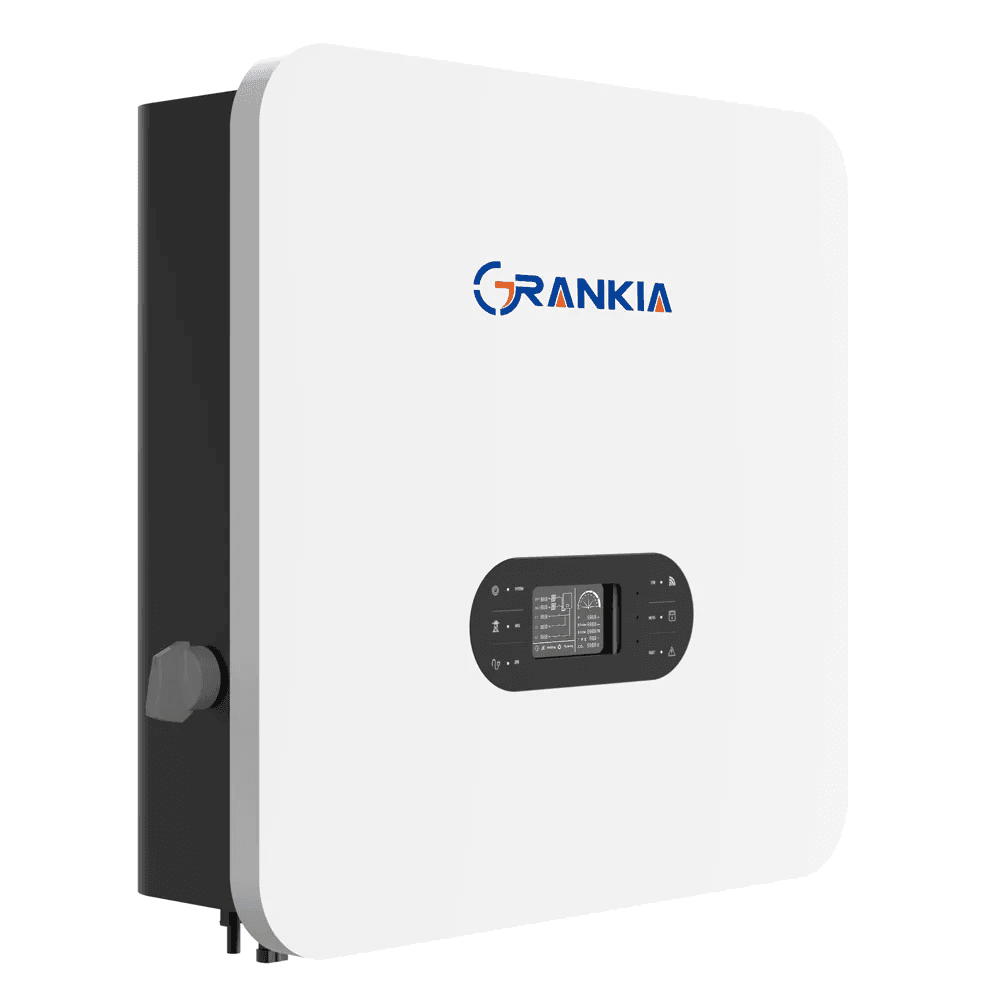

TP17KTL
by Grankia Electric (Guangdong) Co., Ltd. · China
Visit siteTP Series 17 - 25KW Type: On-Grid Transformer: Transformerless Transformer: Transformerless
Green Energy Score
71.9
100% profile complete
String Inverter18.7 kW98.5% peakMonitoringRS 485WLAN
0Upvotes
Overview
TP Series 17 - 25KW Type: On-Grid Transformer: Transformerless Transformer: Transformerless
Key Specifications
Output Power
18.7 kW
Peak Efficiency
98.5%
Enclosure
IP65
Warranty
5 years
Max Input Voltage
1000 V
MPPT Range
200 – 850 V
Max Output
18700 VA
Launch Year
2025
Full Specifications
Product Identity
NameTP17KTL
Sluggrankia-electric-guangdong-co-ltd-tp17ktl
ManufacturerGrankia Electric (Guangdong) Co., Ltd.
CountryChina
CategoryString Inverter
Sub-categoryOn-Grid
DC Input
Input Channels4
MPPT Voltage Range200 – 850 V
Max Input Voltage1000 V
Max Input Current52 A
AC Output
Rated Output Power18.7 kW
Max Output Power18700 VA
Voltage Range280 – 490 V
Frequency44-65 Hz Hz
Max Output Current25 A
Power Factor1
Efficiency
Peak Efficiency98.5%
MPPT Efficiency98.1%
Night Power Consumption200 mW
Protection & Environmental
Enclosure RatingIP65
Operating Temperature-25°C to 60°C
Physical
Weight23 kg
Dimensions510x520x160 mm
Communication
RS 485WLAN
Module-Level Monitoring
Commercial
Price—
Warranty5 years
Launch Year2025
StatusAvailable
Regions & Certifications
Asia-PacificChina
Green Energy Score
Score71.9
Profile Completeness100%
