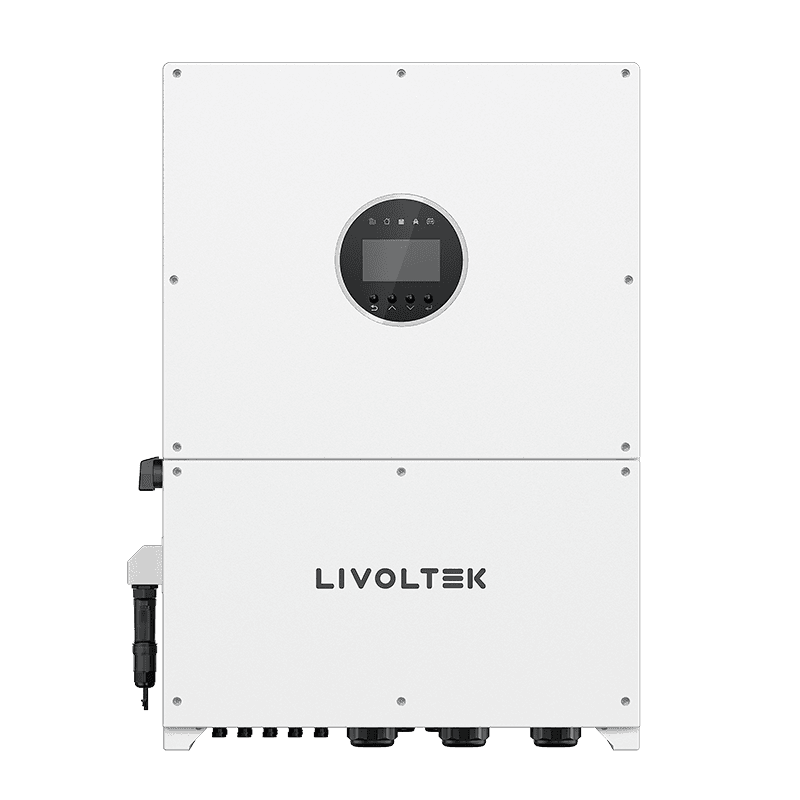

HP3-60KS1
by Hangzhou Livoltek Power Co., Ltd. · China
HP3-40/50/60K S1 Type: Hybrid Transformer: Transformerless Transformer: Transformerless
Green Energy Score
75.3
100% profile complete
Hybrid Inverter60.0 kW98.4% peakMonitoringRS 485WLANCAN
0Upvotes
Overview
HP3-40/50/60K S1 Type: Hybrid Transformer: Transformerless Transformer: Transformerless
Key Specifications
Output Power
60.0 kW
Peak Efficiency
98.4%
Enclosure
IP66
Warranty
1 years
Max Input Voltage
1100 V
MPPT Range
150 – 1000 V
Launch Year
2025
Full Specifications
Product Identity
NameHP3-60KS1
Slughangzhou-livoltek-power-co-ltd-hp3-60ks1
ManufacturerHangzhou Livoltek Power Co., Ltd.
CountryChina
CategoryHybrid Inverter
Sub-categoryHybrid
DC Input
Input Channels10
MPPT Voltage Range150 – 1000 V
Max Input Voltage1100 V
Max Input Current225 A
AC Output
Rated Output Power60.0 kW
Rated Voltage380 V
Frequency50, 60 Hz Hz
Max Output Current100 A
Power Factor1
Efficiency
Peak Efficiency98.4%
MPPT Efficiency98%
Protection & Environmental
Enclosure RatingIP66
Operating Temperature-25°C to 60°C
Physical
Weight80 kg
Dimensions895x620x300 mm
Communication
RS 485WLANCAN
Module-Level Monitoring
Commercial
Price—
Warranty1 years
Launch Year2025
StatusAvailable
Regions & Certifications
Asia-PacificChina
Green Energy Score
Score75.3
Profile Completeness100%
