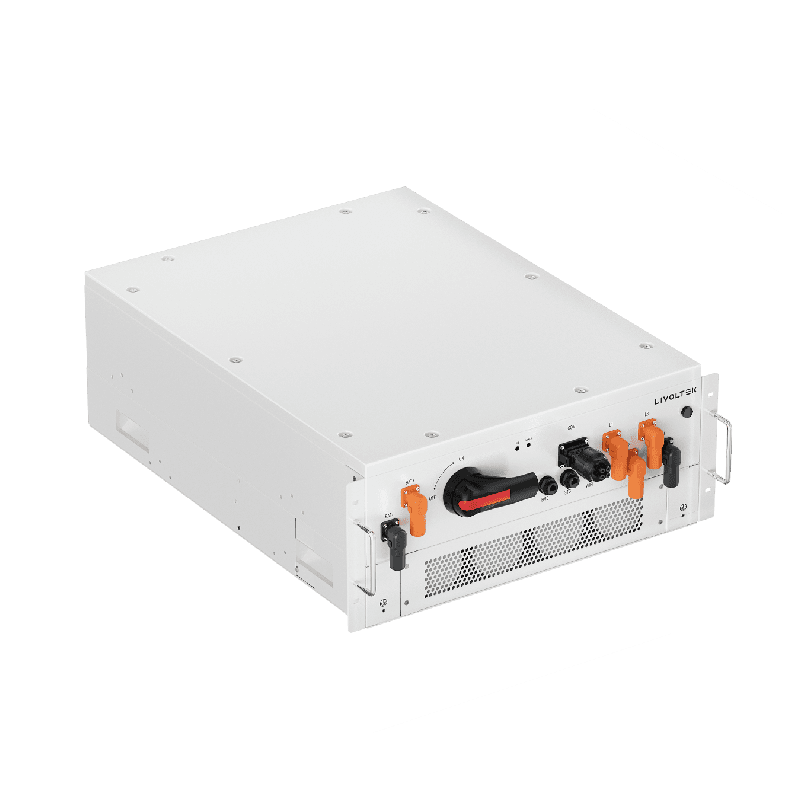

PCS-100KMG1
by Hangzhou Livoltek Power Co., Ltd. · China
PCS-75/100/110/125/135/150KMG1 Type: Hybrid
Green Energy Score
76.3
89% profile complete
Hybrid Inverter100.0 kW99% peakMonitoringRS 485EthernetCAN
0Upvotes
Overview
PCS-75/100/110/125/135/150KMG1 Type: Hybrid
Key Specifications
Output Power
100.0 kW
Peak Efficiency
99%
Enclosure
IP66
Warranty
1 years
Max Input Voltage
1000 V
Launch Year
2025
Full Specifications
Product Identity
NamePCS-100KMG1
Slughangzhou-livoltek-power-co-ltd-pcs-100kmg1
ManufacturerHangzhou Livoltek Power Co., Ltd.
CountryChina
CategoryHybrid Inverter
Sub-categoryHybrid
DC Input
Max Input Voltage1000 V
Max Input Current151.1 A
AC Output
Rated Output Power100.0 kW
Rated Voltage277 V
Frequency45-65 Hz Hz
Max Output Current132.3 A
Power Factor1
Efficiency
Peak Efficiency99%
MPPT Efficiency98.5%
Protection & Environmental
Enclosure RatingIP66
Operating Temperature-30°C to 60°C
Physical
Weight75 kg
Dimensions270x600x800 mm
Communication
RS 485EthernetCAN
Module-Level Monitoring
Commercial
Price—
Warranty1 years
Launch Year2025
StatusAvailable
Regions & Certifications
Asia-PacificChina
Green Energy Score
Score76.3
Profile Completeness89%
