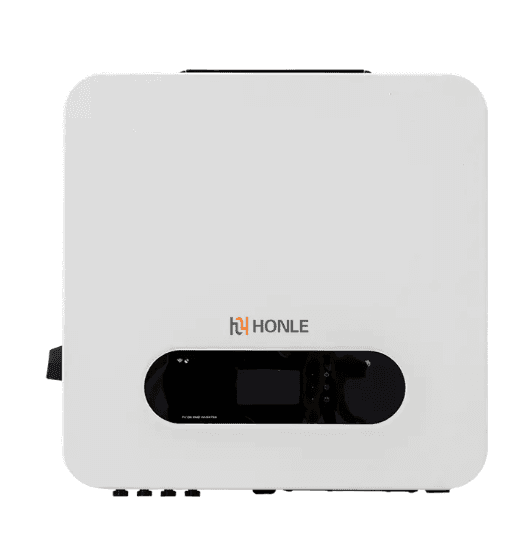

On Grid TP17-25KTL
by Honle New Energy Technology Co., Ltd. · China
Visit siteTechnology: On-Grid
Green Energy Score
76.4
76% profile complete
String Inverter17.0 kW98.5% peakRS 485
0Upvotes
Overview
Technology: On-Grid
Key Specifications
Output Power
17.0 kW
Peak Efficiency
98.5%
Enclosure
IP65
Warranty
5 years
Max Input Voltage
1000 V
MPPT Range
200 – 850 V
Launch Year
2026
Full Specifications
Product Identity
NameOn Grid TP17-25KTL
Slughonle-new-energy-technology-co-ltd-on-grid-tp17-25ktl
ManufacturerHonle New Energy Technology Co., Ltd.
CountryChina
CategoryString Inverter
Sub-categoryOn-Grid
DC Input
Input Channels2
MPPT Voltage Range200 – 850 V
Max Input Voltage1000 V
Max Input Current52 A
AC Output
Rated Output Power17.0 kW
Rated Voltage400 V
Frequency50, 60 Hz Hz
Max Output Current25 A
Efficiency
Peak Efficiency98.5%
Protection & Environmental
Enclosure RatingIP65
Safety ClassIP65
Operating Temperature-25°C to 80°C
Relative Humidity0% – 95%
Physical
Weight23 kg
Dimensions510x520x160 mm
Communication
RS 485
Module-Level Monitoring
Commercial
Price—
Warranty5 years
Launch Year2026
StatusAvailable
Regions & Certifications
Asia-PacificChina
Green Energy Score
Score76.4
Profile Completeness76%
