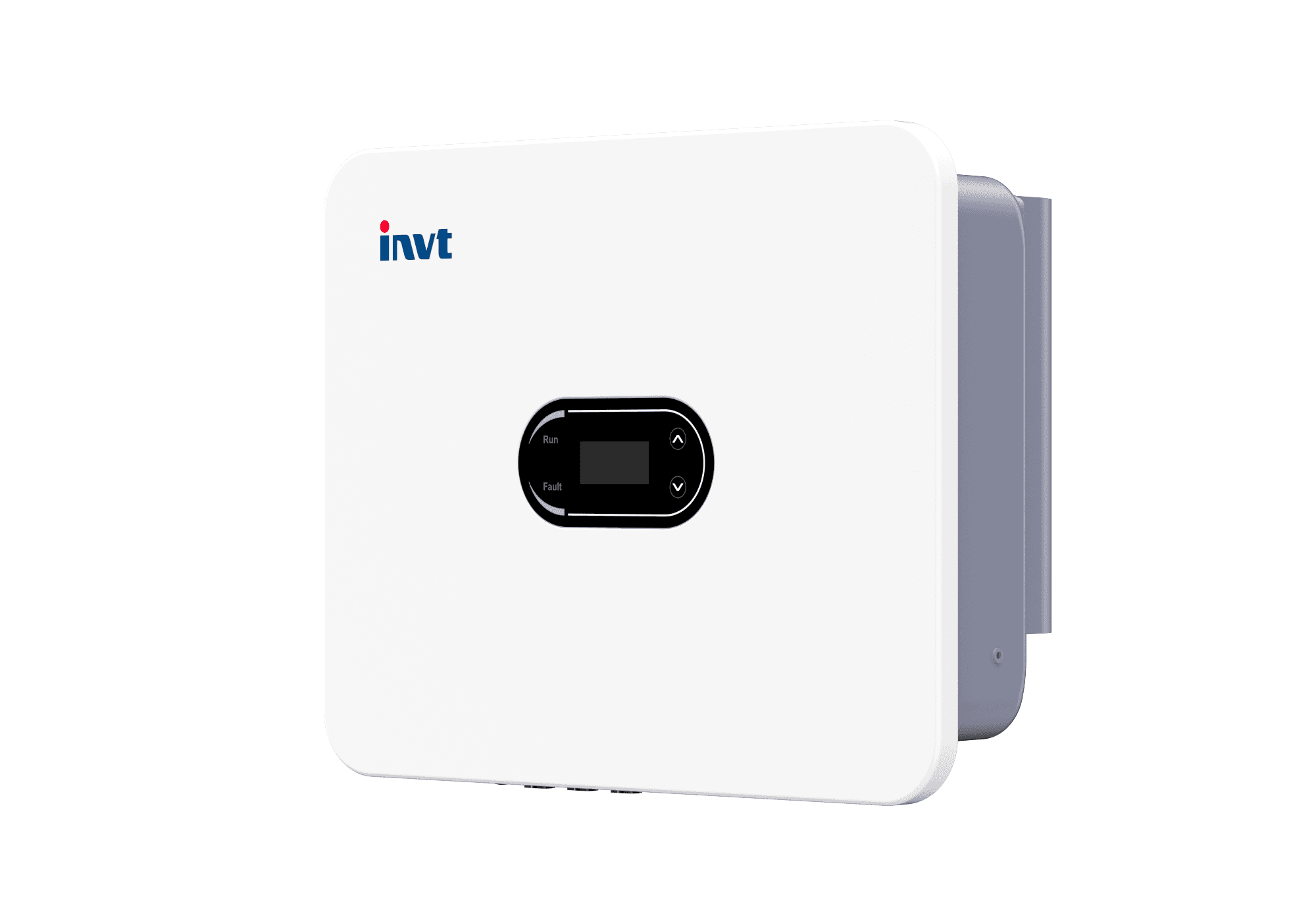

XG 3-15KTR-S
by INVT Solar Technology (Shenzhen) Co., Ltd. · China
Technology: On-Grid
Green Energy Score
79.6
81% profile complete
String Inverter3.0 kW98.4% peakMonitoringRS 485EthernetWLAN
0Upvotes
Overview
Technology: On-Grid
Key Specifications
Output Power
3.0 kW
Peak Efficiency
98.4%
Enclosure
IP66
Warranty
5 years
Max Input Voltage
1100 V
MPPT Range
180 – 1000 V
Launch Year
2026
Full Specifications
Product Identity
NameXG 3-15KTR-S
Sluginvt-solar-technology-shenzhen-co-ltd-xg-3-15ktr-s
ManufacturerINVT Solar Technology (Shenzhen) Co., Ltd.
CountryChina
CategoryString Inverter
Sub-categoryOn-Grid
DC Input
Input Channels2
MPPT Voltage Range180 – 1000 V
Max Input Voltage1100 V
Max Input Current36 A
AC Output
Rated Output Power3.0 kW
Frequency50, 60 Hz Hz
Max Output Current5 A
Power Factor0.99
Efficiency
Peak Efficiency98.4%
Night Power Consumption1000 mW
Protection & Environmental
Enclosure RatingIP66
Safety ClassIP66
Operating Temperature-25°C to 60°C
Relative Humidity0% – 100%
Physical
Weight12 kg
Dimensions395x481x195 mm
Communication
RS 485EthernetWLAN
Module-Level Monitoring
Commercial
Price—
Warranty5 years
Launch Year2026
StatusAvailable
Regions & Certifications
Asia-PacificChina
Green Energy Score
Score79.6
Profile Completeness81%
