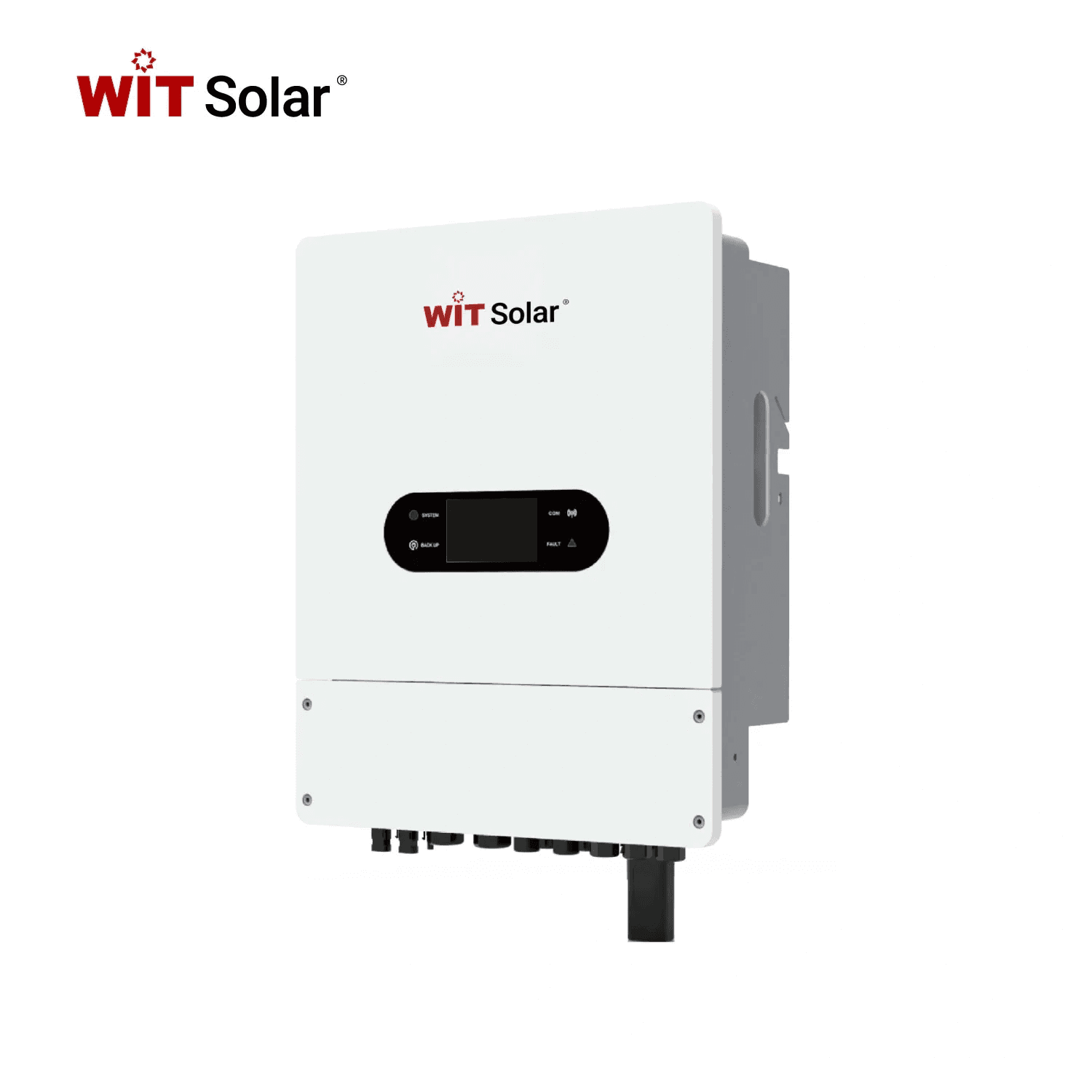

Hybrid 3/4/5kW 48V
by Liaocheng Wit Solar New Energy Technology Co Ltd · China
Visit siteTechnology: Hybrid
Green Energy Score
76.9
71% profile complete
Hybrid Inverter3.6 kW97.6% peak10-Year Warranty
0Upvotes
Overview
Technology: Hybrid
Key Specifications
Output Power
3.6 kW
Peak Efficiency
97.6%
Enclosure
IP66
Warranty
10 years
Max Input Voltage
500 V
MPPT Range
150 – 450 V
Max Output
3960 VA
Launch Year
2026
Full Specifications
Product Identity
NameHybrid 3/4/5kW 48V
Slugliaocheng-wit-solar-new-energy-technology-co-ltd-hybrid-3-4-5kw-48v
ManufacturerLiaocheng Wit Solar New Energy Technology Co Ltd
CountryChina
CategoryHybrid Inverter
Sub-categoryHybrid
DC Input
Input Channels2
MPPT Voltage Range150 – 450 V
Max Input Voltage500 V
Max Input Current18 A
AC Output
Rated Output Power3.6 kW
Max Output Power3960 VA
Rated Voltage220 V
Frequency50, 60 Hz Hz
Max Output Current16 A
Efficiency
Peak Efficiency97.6%
Protection & Environmental
Enclosure RatingIP66
Safety ClassIP66
Operating Temperature-25°C to 60°C
Relative Humidity0% – 95%
Physical
Weight20 kg
Dimensions427x198x554 mm
Commercial
Price—
Warranty10 years
Launch Year2026
StatusAvailable
Regions & Certifications
Asia-PacificChina
Green Energy Score
Score76.9
Profile Completeness71%
