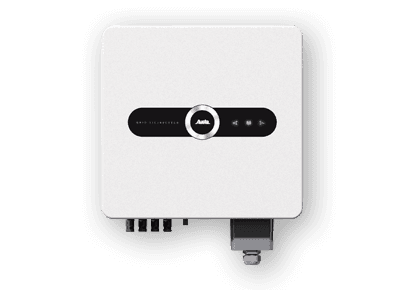

AU20K3P
by Ningbo Austa Solar Tech Co., Ltd · China
Visit siteAU20/23/25/28K3P Type: On-Grid
Green Energy Score
75.1
100% profile complete
String Inverter30.0 kW98.7% peakMonitoringRS 485EthernetWLANGPRS
0Upvotes
Overview
AU20/23/25/28K3P Type: On-Grid
Key Specifications
Output Power
30.0 kW
Peak Efficiency
98.7%
Enclosure
IP66
Warranty
5 years
Max Input Voltage
1100 V
MPPT Range
180 – 1000 V
Launch Year
2025
Full Specifications
Product Identity
NameAU20K3P
Slugningbo-austa-solar-tech-co-ltd-au20k3p
ManufacturerNingbo Austa Solar Tech Co., Ltd
CountryChina
CategoryString Inverter
Sub-categoryOn-Grid
DC Input
Input Channels4
MPPT Voltage Range180 – 1000 V
Max Input Voltage1100 V
Max Input Current60 A
AC Output
Rated Output Power30.0 kW
Rated Voltage400 V
Voltage Range310 – 480 V
Frequency45-65 Hz Hz
Max Output Current32 A
Efficiency
Peak Efficiency98.7%
MPPT Efficiency98.2%
Night Power Consumption1000 mW
Protection & Environmental
Enclosure RatingIP66
Operating Temperature-25°C to 60°C
Physical
Weight18 kg
Dimensions439x427x212 mm
Communication
RS 485EthernetWLANGPRS
Module-Level Monitoring
Commercial
Price—
Warranty5 years
Launch Year2025
StatusAvailable
Regions & Certifications
Asia-PacificChina
Green Energy Score
Score75.1
Profile Completeness100%
