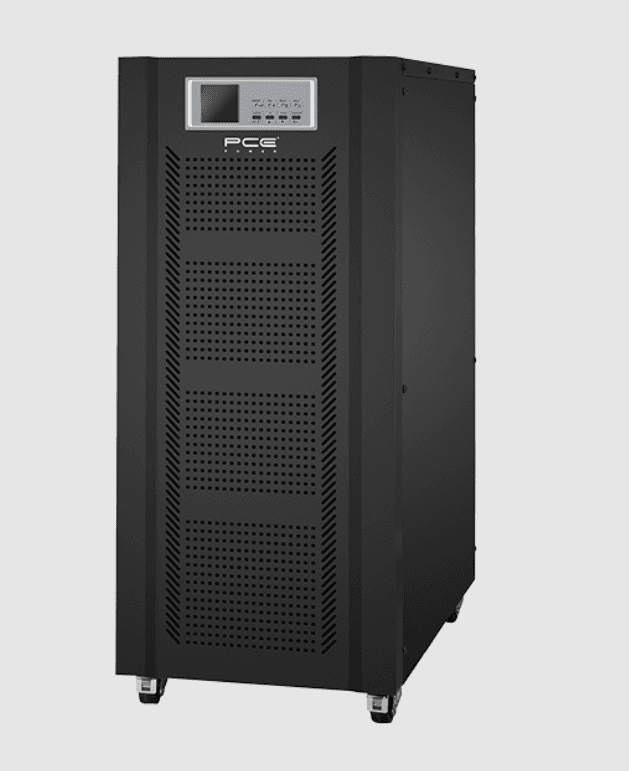

CASA-TX 30kW
by PCE Power FZE · UAE
Visit siteType: Hybrid
Green Energy Score
50
100% profile complete
Hybrid Inverter30.0 kW95% peakMonitoringRS 232USB
0Upvotes
Overview
Type: Hybrid
Key Specifications
Output Power
30.0 kW
Peak Efficiency
95%
Enclosure
IP65
Warranty
1 years
Max Input Voltage
950 V
MPPT Range
460 – 900 V
Launch Year
2025
Full Specifications
Product Identity
NameCASA-TX 30kW
Slugpce-power-fze-casa-tx-30kw
ManufacturerPCE Power FZE
CountryUAE
CategoryHybrid Inverter
Sub-categoryHybrid
DC Input
Input Channels1
MPPT Voltage Range460 – 900 V
Max Input Voltage950 V
Max Input Current72 A
AC Output
Rated Output Power30.0 kW
Rated Voltage230 V
Voltage Range196 – 253 V
Frequency49-51 Hz Hz
Power Factor1
Efficiency
Peak Efficiency95%
Protection & Environmental
Enclosure RatingIP65
Operating Temperature-10°C to 55°C
Physical
Weight223 kg
Dimensions1021x715x430 mm
Communication
RS 232USB
Module-Level Monitoring
Commercial
Price—
Warranty1 years
Launch Year2025
StatusAvailable
Regions & Certifications
GlobalUAE
Green Energy Score
Score50
Profile Completeness100%
