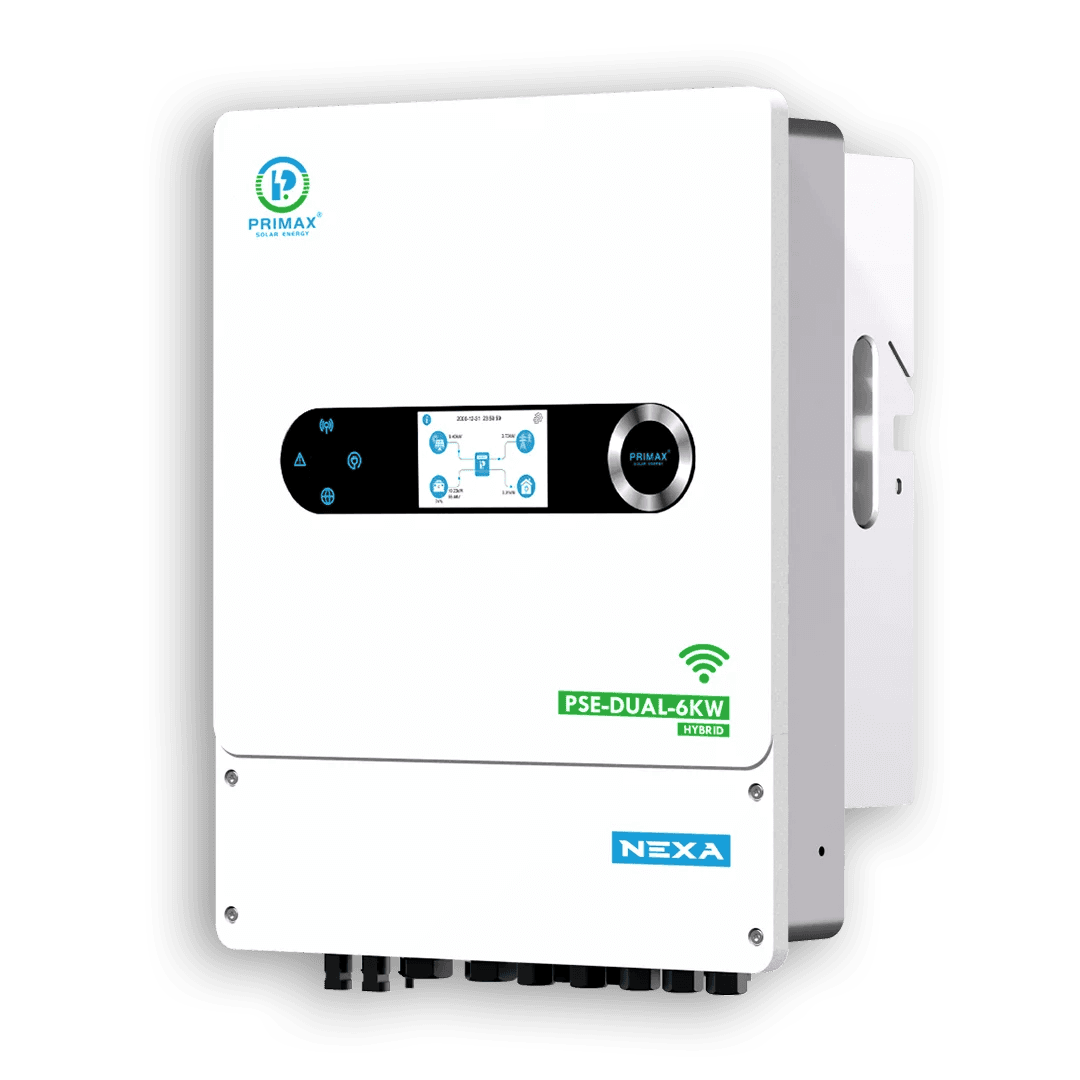

Nexa Series 6KW
by Primax Solar Energy Pvt Ltd · Pakistan
Visit siteTechnology: On-Grid
Green Energy Score
76.9
76% profile complete
String Inverter6.0 kW97.6% peakMonitoring10-Year WarrantyRS 485EthernetWLAN
0Upvotes
Overview
Technology: On-Grid
Key Specifications
Output Power
6.0 kW
Peak Efficiency
97.6%
Enclosure
IP65
Warranty
10 years
Max Input Voltage
500 V
MPPT Range
150 – 450 V
Max Output
6000 VA
Launch Year
2026
Full Specifications
Product Identity
NameNexa Series 6KW
Slugprimax-solar-energy-pvt-ltd-nexa-series-6kw
ManufacturerPrimax Solar Energy Pvt Ltd
CountryPakistan
CategoryString Inverter
Sub-categoryOn-Grid
DC Input
Input Channels2
MPPT Voltage Range150 – 450 V
Max Input Voltage500 V
Max Input Current36 A
AC Output
Rated Output Power6.0 kW
Max Output Power6000 VA
Rated Voltage220 V
Frequency50, 60 Hz Hz
Max Output Current27 A
Power Factor1
Efficiency
Peak Efficiency97.6%
Protection & Environmental
Enclosure RatingIP65
Operating Temperature-25°C to 60°C
Relative Humidity0% – 95%
Physical
Weight19 kg
Dimensions554x427x198 mm
Communication
RS 485EthernetWLAN
Module-Level Monitoring
Commercial
Price—
Warranty10 years
Launch Year2026
StatusAvailable
Regions & Certifications
Asia-PacificPakistan
Green Energy Score
Score76.9
Profile Completeness76%
