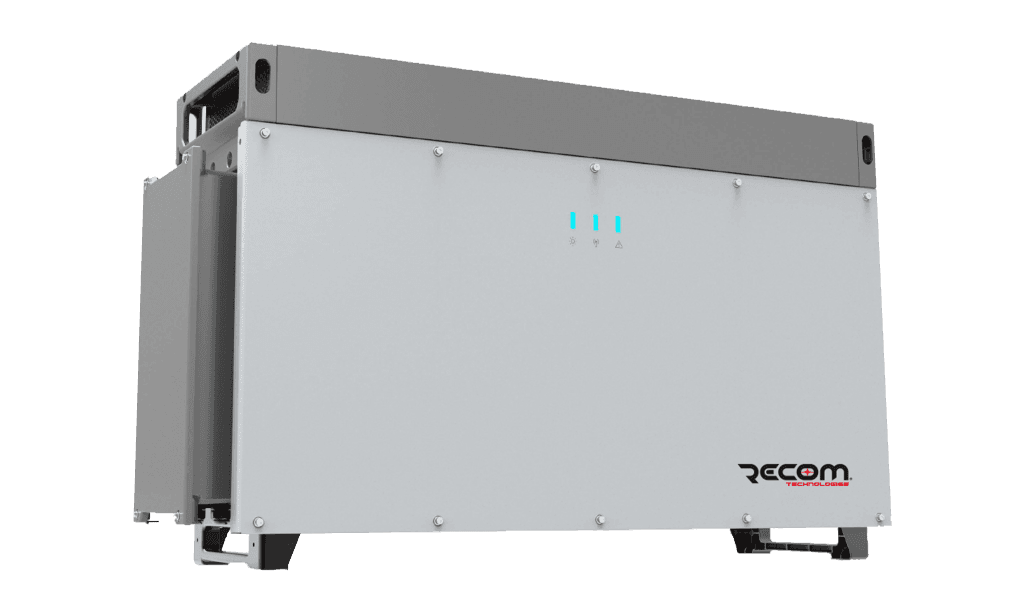

RCM 275-TP-M-HV

RCM 275-TP-M-HV

by Recom Technologies Ltd · Italy

Visit site

Zeus String Solar RCM 275-TP-M-HV Type: On-Grid Transformer: Transformerless Transformer: Transformerless

Green Energy Score

77.5

100% profile complete

String Inverter275.0 kW99.03% peakMonitoringRS 485
0

Overview

Zeus String Solar RCM 275-TP-M-HV Type: On-Grid Transformer: Transformerless Transformer: Transformerless

Key Specifications

Output Power

275.0 kW

Peak Efficiency

99.03%

Enclosure

IP66

Warranty

5 years

Max Input Voltage

1500 V

MPPT Range

500 – 1500 V

Max Output

275000 VA

Launch Year

2025

Full Specifications

Product Identity

NameRCM 275-TP-M-HV
Slugrecom-technologies-ltd-rcm-275-tp-m-hv
ManufacturerRecom Technologies Ltd
CountryItaly
CategoryString Inverter
Sub-categoryOn-Grid

DC Input

Input Channels12
MPPT Voltage Range500 – 1500 V
Max Input Voltage1500 V
Max Input Current480 A

AC Output

Rated Output Power275.0 kW
Max Output Power275000 VA
Rated Voltage800 V
Voltage Range680 – 880 V
Frequency45-65 Hz Hz
Max Output Current198.5 A
Power Factor0.99

Efficiency

Peak Efficiency99.03%
MPPT Efficiency98.8%
Night Power Consumption3500 mW

Protection & Environmental

Enclosure RatingIP66
Operating Temperature-30°C to 60°C

Physical

Weight130 kg
Dimensions733x1180x350 mm

Communication

RS 485
Module-Level Monitoring

Commercial

Price—
Warranty5 years
Launch Year2025
StatusAvailable

Regions & Certifications

EuropeItaly

Green Energy Score

Score77.5
Profile Completeness100%
