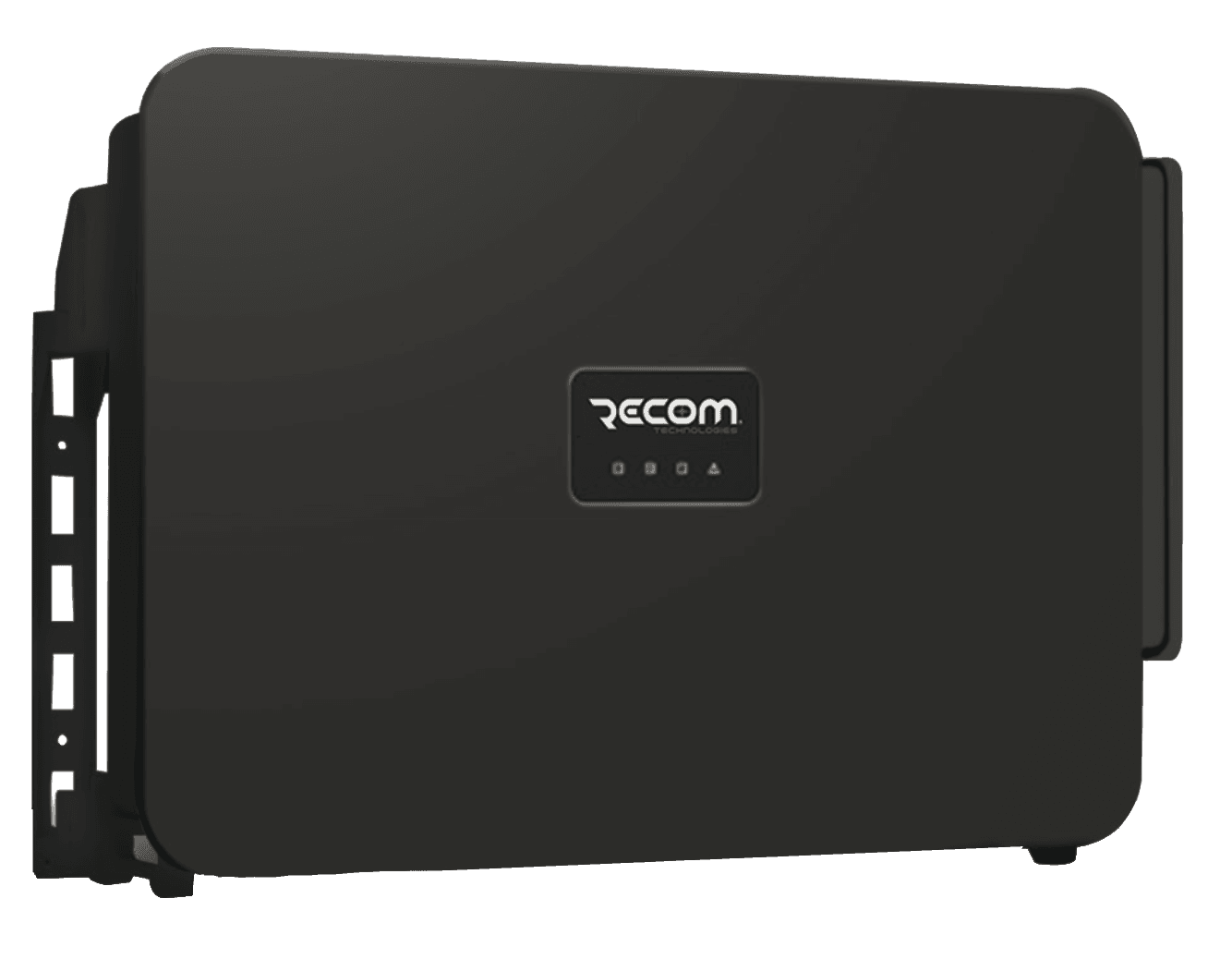

RCM-300-TP-M-HV
by Recom Technologies Ltd · Italy
Visit siteZeus Three Phase High Voltage RCM-300/320/333/3... Type: On-Grid Transformer: Transformerless Transformer: Transformerless
Green Energy Score
75.5
100% profile complete
String Inverter300.0 kW99% peakMonitoringRS 485USBWLAN
0Upvotes
Overview
Zeus Three Phase High Voltage RCM-300/320/333/3... Type: On-Grid Transformer: Transformerless Transformer: Transformerless
Key Specifications
Output Power
300.0 kW
Peak Efficiency
99%
Enclosure
IP66, NEMA 4X
Warranty
5 years
Max Input Voltage
1500 V
MPPT Range
500 – 1500 V
Launch Year
2025
Full Specifications
Product Identity
NameRCM-300-TP-M-HV
Slugrecom-technologies-ltd-rcm-300-tp-m-hv
ManufacturerRecom Technologies Ltd
CountryItaly
CategoryString Inverter
Sub-categoryOn-Grid
DC Input
Input Channels30
MPPT Voltage Range500 – 1500 V
Max Input Voltage1500 V
Max Input Current450 A
AC Output
Rated Output Power300.0 kW
Rated Voltage800 V
Voltage Range640 – 920 V
Frequency50, 60 Hz Hz
Max Output Current238.2 A
Efficiency
Peak Efficiency99%
MPPT Efficiency98.8%
Night Power Consumption15000 mW
Protection & Environmental
Enclosure RatingIP66, NEMA 4X
Operating Temperature-30°C to 60°C
Physical
Weight120 kg
Dimensions825x1199.5x368.3 mm
Communication
RS 485USBWLAN
Module-Level Monitoring
Commercial
Price—
Warranty5 years
Launch Year2025
StatusAvailable
Regions & Certifications
EuropeItaly
Green Energy Score
Score75.5
Profile Completeness100%
