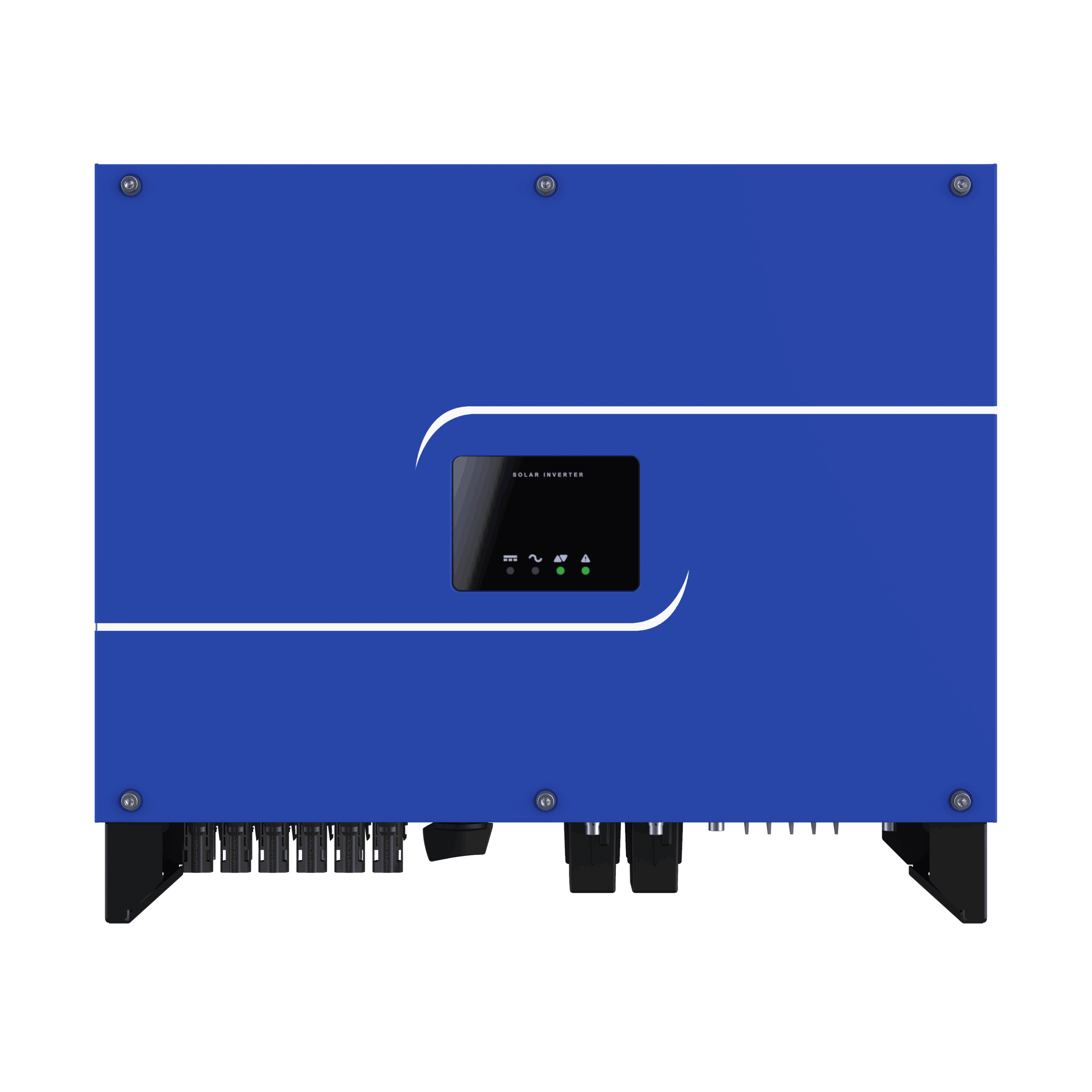

SE 10KTL-DL3
by Shenzhen Senergy Technology Co., Ltd. · China
SE 10/12KTL-DL3-220V Type: On-Grid Transformer: Transformerless Transformer: Transformerless
Green Energy Score
78.3
100% profile complete
String Inverter11.5 kW97.3% peakMonitoringRS 485BluetoothWLAN
0Upvotes
Overview
SE 10/12KTL-DL3-220V Type: On-Grid Transformer: Transformerless Transformer: Transformerless
Key Specifications
Output Power
11.5 kW
Peak Efficiency
97.3%
Enclosure
IP65
Warranty
5 years
Max Input Voltage
800 V
MPPT Range
180 – 750 V
Max Output
11500 VA
Launch Year
2025
Full Specifications
Product Identity
NameSE 10KTL-DL3
Slugshenzhen-senergy-technology-co-ltd-se-10ktl-dl3
ManufacturerShenzhen Senergy Technology Co., Ltd.
CountryChina
CategoryString Inverter
Sub-categoryOn-Grid
DC Input
Input Channels4
MPPT Voltage Range180 – 750 V
Max Input Voltage800 V
Max Input Current54 A
AC Output
Rated Output Power11.5 kW
Max Output Power11500 VA
Rated Voltage220 V
Voltage Range180 – 300 V
Frequency55-65 Hz Hz
Max Output Current84.9 A
Power Factor0.99
Efficiency
Peak Efficiency97.3%
Night Power Consumption1000 mW
Protection & Environmental
Enclosure RatingIP65
Operating Temperature-25°C to 60°C
Physical
Weight37 kg
Dimensions446x555x270 mm
Communication
RS 485BluetoothWLAN
Module-Level Monitoring
Commercial
Price—
Warranty5 years
Launch Year2025
StatusAvailable
Regions & Certifications
Asia-PacificChina
Green Energy Score
Score78.3
Profile Completeness100%
