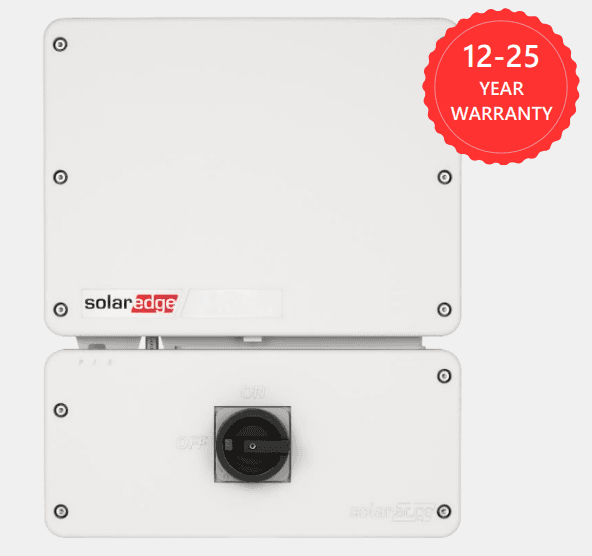

SE10000H-MM
by SolarEdge Technologies, Ltd. · Israel
Visit siteSE5000H/SE10000H-MM Home Hub Universal Inverter... Type: On-Grid Transformer: Transformerless Transformer: Transformerless
String Inverter10.0 kW99.2% peakMonitoringRS 485WLAN
0Upvotes
Overview
SE5000H/SE10000H-MM Home Hub Universal Inverter... Type: On-Grid Transformer: Transformerless Transformer: Transformerless
Key Specifications
Output Power
10.0 kW
Peak Efficiency
99.2%
Enclosure
IP65
Warranty
1 years
Max Input Voltage
480 V
Max Output
10000 VA
Launch Year
2025
Full Specifications
Product Identity
NameSE10000H-MM
Slugsolaredge-technologies-ltd-se10000h-mm
ManufacturerSolarEdge Technologies, Ltd.
CountryIsrael
CategoryString Inverter
Sub-categoryOn-Grid
DC Input
Max Input Voltage480 V
Max Input Current25.5 A
AC Output
Rated Output Power10.0 kW
Max Output Power10000 VA
Rated Voltage220 V
Voltage Range184 – 265 V
Frequency50, 60 Hz Hz
Max Output Current45.5 A
Power Factor1
Efficiency
Peak Efficiency99.2%
MPPT Efficiency99%
Night Power Consumption2500 mW
Protection & Environmental
Enclosure RatingIP65
Operating Temperature-40°C to 60°C
Physical
Weight20.3 kg
Dimensions540x370x185 mm
Communication
RS 485WLAN
Module-Level Monitoring
Commercial
Price—
Warranty1 years
Launch Year2025
StatusAvailable
Regions & Certifications
GlobalIsrael
InverterRank
Score81.9
Profile Completeness89%
