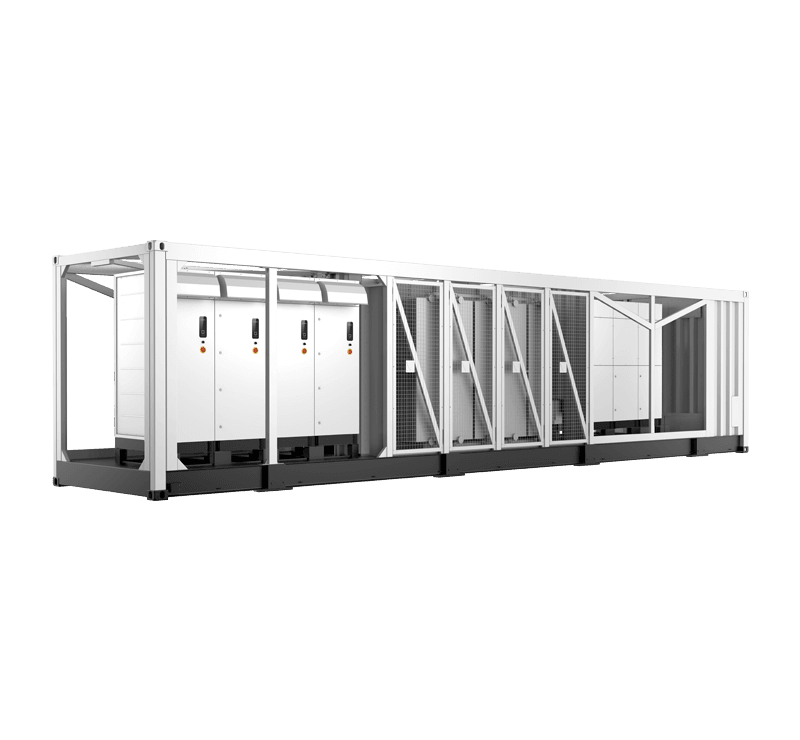

SG6600UD-MV-20
by Sungrow Power Supply Co., Ltd. · China
Type: On-Grid Transformer: Yes Transformer: Yes
String Inverter20.0 kW99% peakMonitoringRS 485EthernetWLAN
0Upvotes
Overview
Type: On-Grid Transformer: Yes Transformer: Yes
Key Specifications
Output Power
20.0 kW
Peak Efficiency
99%
Enclosure
IP65
Warranty
1 years
Max Input Voltage
1500 V
MPPT Range
938 – 1500 V
Launch Year
2025
Full Specifications
Product Identity
NameSG6600UD-MV-20
Slugsungrow-power-supply-co-ltd-sg6600ud-mv-20
ManufacturerSungrow Power Supply Co., Ltd.
CountryChina
CategoryString Inverter
Sub-categoryOn-Grid
DC Input
Input Channels30
MPPT Voltage Range938 – 1500 V
Max Input Voltage1500 V
Max Input Current8610 A
AC Output
Rated Output Power20.0 kW
Voltage Range20000 – 35000 V
Frequency45-65 Hz Hz
Max Output Current6930 A
Efficiency
Peak Efficiency99%
MPPT Efficiency98.7%
Protection & Environmental
Enclosure RatingIP65
Operating Temperature-35°C to 60°C
Physical
Weight28000 kg
Dimensions2896x12192x2438 mm
Communication
RS 485EthernetWLAN
Module-Level Monitoring
Commercial
Price—
Warranty1 years
Launch Year2025
StatusAvailable
Regions & Certifications
Asia-PacificChina
InverterRank
Score80.3
Profile Completeness100%
