Green Energy
Inverters

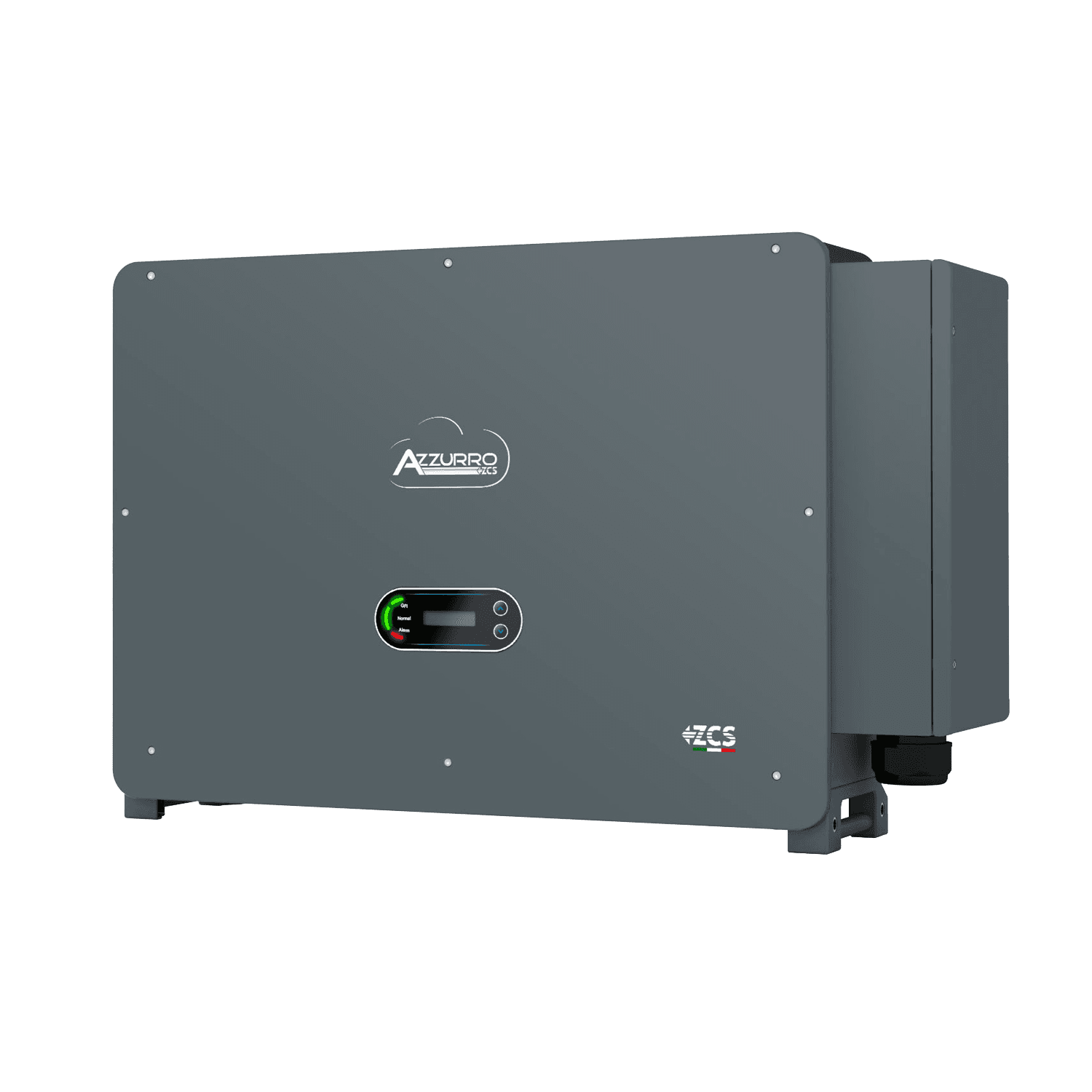

3PH 80KTL-LV

3PH 80KTL-LV

by Zucchetti Centro Sistemi S.p.a. (Azzurro) · Italy

Three-Phase 80 - 110KTL-LV Type: On-Grid Transformer: Transformerless Transformer: Transformerless

Green Energy Score

74.8

100% profile complete

String Inverter88.0 kW98.6% peakMonitoringRS 485EthernetUSBBluetoothWLAN
0

Overview

Three-Phase 80 - 110KTL-LV Type: On-Grid Transformer: Transformerless Transformer: Transformerless

Key Specifications

Output Power

88.0 kW

Peak Efficiency

98.6%

Enclosure

IP66

Warranty

5 years

Max Input Voltage

1100 V

MPPT Range

180 – 1000 V

Max Output

88000 VA

Launch Year

2025

Full Specifications

Product Identity

Name3PH 80KTL-LV
Slugzucchetti-centro-sistemi-s-p-a-azzurro-3ph-80ktl-lv
ManufacturerZucchetti Centro Sistemi S.p.a. (Azzurro)
CountryItaly
CategoryString Inverter
Sub-categoryOn-Grid

DC Input

Input Channels16
MPPT Voltage Range180 – 1000 V
Max Input Voltage1100 V
Max Input Current208 A

AC Output

Rated Output Power88.0 kW
Max Output Power88000 VA
Voltage Range184 – 480 V
Frequency45-66 Hz Hz
Max Output Current384 A
Power Factor1

Efficiency

Peak Efficiency98.6%
MPPT Efficiency98.2%
Night Power Consumption1000 mW

Protection & Environmental

Enclosure RatingIP66
Operating Temperature-30°C to 60°C

Physical

Weight72 kg
Dimensions660x1051x340 mm

Communication

RS 485EthernetUSBBluetoothWLAN
Module-Level Monitoring

Commercial

Price—
Warranty5 years
Launch Year2025
StatusAvailable

Regions & Certifications

EuropeItaly

Green Energy Score

Score74.8
Profile Completeness100%
